Seamless API

v1.12.5

Introduction

Document Rules

In this document, we used some rules to emphasize specific words and vocabularies.
And pointed to some particular information.

Annotations and Warnings

We emphasized the information might be ignored by 3 visual ways.

Notice

  1. Please contact Dragoon Soft to ask Wallet API address, Wallet API public key, and Agent Account.
  2. Please provide IP that connect to us before you get started.(Please filled up in MIF.)
  3. The integration transmit formation is Json. And is encoded by UTF-8.

Authentication

Generate public key and private key

example_private.pem:

-----BEGIN RSA PRIVATE KEY-----
MIICXgIBAAKBgQC33DHVHpT4IKLzLb59ZcxcmPvUsIO3+s8qd8aAM1le/DHVHmYi
Vp39af0dF+maQ+1NfikmVBfl7HfygCVLb/PtFrfM52zyXXurdM99Ijmgotit3S8X
C0jImrlyCR9TmrSNyN/IadfNby1wFN0jitka3Z7JuFw2ieY3PO2AGh7hewIDAQAB
AoGAUHZ8FIHKvgBCb9wgFm7bjdaht0X8jyKjUTmT1H0kao5CHLuuBO8VO1cMH5Rc
dlet3ZEN3ylEQCpJoAX2zFnVTLmsoH484ODCJkHxuMN0ONzPRiSeJSvgmHj7ko/L
D+19bWe4u0ru216w5Th0etGYNEsYw6BeTNDHK0571vvhjoECQQDno90GAqR6t4xQ
Bkvv2z67hIMPkrw8ahvD1b94jTlkK5pBCnQ4kBx8I0BbFSKOH1NDjpVFifwtOhqo
XDtC7f5BAkEAyzID8BzYar/9J02by6/PNVRxvwO51y6KMX6ZccDd80IeCKYX9Jnw
gUBwI83iLL8C3cF9sTQ9focj7enBO4wouwJBAJruVNTCS7Tws16K95t0Lx9I4Eg4
QsK9zdhMTQaanrpLF59NGLMEYKj/AvpoxnX8qbpT0a9zPUIazN2y4sg/WoECQQCJ
h9LOhFee+U+ZeJgIp3hyOjO6/ASfNqrmkS++pLIVYhz98Z2pO0Bj23+LXGDHtIl2
Gu6+MAOnTkTtVRgq+9TdAkEAqQYCvTifS07C1/9f7bd3EFv2UtCpBiugvLPeTzFK
pAbaXZeMX61rw69V1cVEM5jVBrVW0I66VMJIDlMtuwePrQ==
-----END RSA PRIVATE KEY-----

example_public.pub:

-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQC33DHVHpT4IKLzLb59ZcxcmPvU
sIO3+s8qd8aAM1le/DHVHmYiVp39af0dF+maQ+1NfikmVBfl7HfygCVLb/PtFrfM
52zyXXurdM99Ijmgotit3S8XC0jImrlyCR9TmrSNyN/IadfNby1wFN0jitka3Z7J
uFw2ieY3PO2AGh7hewIDAQAB
-----END PUBLIC KEY-----
















Request Signing

Encryption/Decryption Example:

using System;
using System.IO;
using System.Net;
using System.Text;
using System.Text.Json;
using System.Security.Cryptography;

namespace seamless
{
    public class SendData
    {
        public string channel { get; set; }
        public string agent { get; set; }
        public string account { get; set; }
    }
    class Program
    {
        public static string api_url = "<url>"; // This is a example Url, please fill in the right Url from the MIF
        public static string channel = "00746280"; // This is a example Channel, please fill in the right Channel from the MIF
        public static string agent = "SeamlessEx01"; // This is a example Agent, please fill in the right Agent from the MIF
        public static byte[] HashAndSignBytes(byte[] DataToSign)
        {
            try
            {
                // Create a new instance of RSACryptoServiceProvider using the
                // key from RSAParameters.
                RSACryptoServiceProvider RSAalg = new RSACryptoServiceProvider(1024);
                using (var stream = File.OpenRead("example_private.pem")) // Please Change the example_private.pem to your rsaPrivateKey
                using (var reader = new PemUtils.PemReader(stream))
                {
                    var rsaParameters = reader.ReadRsaKey();
                    RSAalg.ImportParameters(rsaParameters);
                }
                // Hash and sign the data. Pass a new instance of SHA256
                // to specify the hashing algorithm.
                return RSAalg.SignData(DataToSign, SHA256.Create());
            }
            catch(CryptographicException e)
            {
                Console.WriteLine(e.Message);
                return null;
            }
        }
        public static void CreateMember()
        {
            SendData _data = new SendData()
            {
                channel = channel, // this is a channel
                agent = agent, // this is a agent
                account = "example001" // This is a example Account, please fill in the right Account from the MIF
            };
            string Json = JsonSerializer.Serialize<SendData>(_data);
            var post_data = Encoding.UTF8.GetBytes(Json);
            var signedData = HashAndSignBytes(post_data);
            var Signature = Convert.ToBase64String(signedData);
            var request = (HttpWebRequest)WebRequest.Create("https://"+ api_url +"/v1/member/create");
            request.Method = "POST";
            request.ContentType = "application/json";
            request.Headers.Set("X-Ds-Signature", Signature);
            request.ContentLength = post_data.Length;
            using (var stream = request.GetRequestStream())
            {
                stream.Write(post_data, 0, post_data.Length);
            }
            var response = (HttpWebResponse)request.GetResponse();
            var responseString = new StreamReader(response.GetResponseStream()).ReadToEnd();
            Console.WriteLine(responseString);
        }
        static void Main(string[] args)
        {
            CreateMember();
        }
    }
}
package main

import (
    "bytes"
    "crypto"
    "crypto/rand"
    "crypto/rsa"
    "crypto/sha256"
    "crypto/x509"
    "encoding/base64"
    "encoding/json"
    "encoding/pem"
    "fmt"
    "io/ioutil"
    "net/http"
)

type CreateMemberRequest struct {
    Channel string `json:"channel"`
    Agent   string `json:"agent"`
    Account string `json:"account"`
}

func main() {
    apiDomain := "<url>" // This is a example Url, please fill in the right Url from the MIF

    rsaPrivateKey := getPrivateKey("./example_private.pem") // Please Change the example_private.pem to your rsaPrivateKey

    createMemberReq := CreateMemberRequest{
        Channel: "00746280", // This is a example Channel, please fill in the right Channel from the MIF
        Agent:   "SeamlessEx01", // This is a example Agent, please fill in the right Agent from the MIF
        Account: "example001", // This is a example Account, please fill in the right Account from the MIF
    }
    data, err := json.Marshal(&createMemberReq)
    if err != nil {
        panic(err)
    }
    signature, err := sign(rsaPrivateKey, data)
    if err != nil {
        panic("sing error, err: " + err.Error())
    }
    base64Signature := base64.StdEncoding.EncodeToString(signature)

    url := fmt.Sprintf("https://%s/v1/member/create", apiDomain)
    post(url, base64Signature, data)
}

func getPrivateKey(path string) *rsa.PrivateKey {
    privateBytes, err := ioutil.ReadFile(path)
    if err != nil {
        panic("read file error, err: " + err.Error())
    }

    block, _ := pem.Decode(privateBytes)
    if block == nil {
        panic("pem decode block nil")
    }

    switch block.Type {
    case "RSA PRIVATE KEY":
        rsaPrivateKey, err := x509.ParsePKCS1PrivateKey(block.Bytes)
        if err != nil {
            panic("x509.ParsePKCS1PrivateKey error, err: " + err.Error())
        }
        return rsaPrivateKey
    default:
        panic("block type is not RSA PRIVATE KEY, type: " + block.Type)
    }

}

func sign(privateKey *rsa.PrivateKey, data []byte, ) ([]byte, error) {
    h := sha256.New()
    h.Write(data)
    d := h.Sum(nil)
    return rsa.SignPKCS1v15(rand.Reader, privateKey, crypto.SHA256, d)
}

func post(url, xDSSignature string, requestBody []byte) (statusCode int, body string) {
    req, err := http.NewRequest("POST", url, bytes.NewBuffer(requestBody))
    req.Header.Set("X-Ds-Signature", xDSSignature)
    req.Header.Set("Content-Type", "application/json")

    client := &http.Client{}
    resp, err := client.Do(req)
    if err != nil {
        panic(err)
    }
    defer resp.Body.Close()

    fmt.Println("response Status:", resp.Status)
    fmt.Println("response StatusCode:", resp.StatusCode)
    responseBody, _ := ioutil.ReadAll(resp.Body)
    fmt.Println("response Body:", string(responseBody))

    return resp.StatusCode ,string(responseBody)
}
package com.seamless;

import java.io.BufferedReader;
import java.io.DataOutputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.UnsupportedEncodingException;
import java.io.ObjectInputFilter.Status;
import java.net.HttpURLConnection;
import java.net.MalformedURLException;
import java.net.URL;
import java.io.File;
import java.nio.charset.Charset;
import java.util.Base64;
import java.nio.file.Files;
import java.security.Signature;
import org.bouncycastle.asn1.ASN1Sequence;
import org.bouncycastle.asn1.pkcs.RSAPrivateKeyStructure;
import java.security.spec.RSAPrivateKeySpec;
import java.security.KeyFactory;
import java.security.PrivateKey;
public class Seamless {
    public static final String api_url = "<url>"; // This is a example Url, please fill in the right Url from the MIF
    public static final String channel = "00746280"; // This is a example Channel, please fill in the right Channel from the MIF
    public static final String agent = "SeamlessEx01"; // This is a example Agent, please fill in the right Agent from the MIF
    // Please add your privateKey path
    public static final String PRV_PATH = "seamless/java/example_private.pem"; // Please Change the example_private.pem to your rsaPrivateKey
    public static String signSHA256RSA(String data) {
        try {
            File file = new File(PRV_PATH);
            String strPk = new String(Files.readAllBytes(file.toPath()), Charset.defaultCharset());
            String realPK = strPk.replaceAll("-----BEGIN RSA PRIVATE KEY-----", "")
            .replaceAll("-----END RSA PRIVATE KEY-----", "")
            .replaceAll("\n", "");
            byte[] b1 = Base64.getDecoder().decode(realPK);
            ASN1Sequence asn1Data = (ASN1Sequence) ASN1Sequence.fromByteArray(b1);
            RSAPrivateKeyStructure asn1PrivKey = new RSAPrivateKeyStructure(asn1Data);
            RSAPrivateKeySpec rsaPrivKeySpec = new RSAPrivateKeySpec(asn1PrivKey.getModulus(), asn1PrivKey.getPrivateExponent());
            KeyFactory kf = KeyFactory.getInstance("RSA");
            PrivateKey privateKey = kf.generatePrivate(rsaPrivKeySpec);
            // sign with SHA256withRSA
            Signature privateSignature = Signature.getInstance("SHA256withRSA");
            privateSignature.initSign(privateKey);
            privateSignature.update(data.getBytes("UTF-8"));
            byte[] s = privateSignature.sign();
            byte[] SignatureData = Base64.getEncoder().encode(s);

            return new String(SignatureData);
        } catch (java.lang.Exception e) {
            System.out.println(e);
        }
        return "";
    }
    public static void createMember() {
        try{
            String data = "{\"agent\":\""+ agent +"\", \"channel\":\""+ channel +"\", \"account\":\"example001\"}"; // This is a example Account, please fill in the right Account from the MIF
            System.out.println(data);
            String SignatureData = signSHA256RSA(data);
            // Create connection
            URL url = new URL("https://"+ api_url +"/v1/member/create");
            HttpURLConnection connection = (HttpURLConnection) url.openConnection();
            connection.setDoOutput(true);
            connection.setDoInput(true);
            connection.setRequestMethod("POST");
            connection.setUseCaches(false);
            connection.setInstanceFollowRedirects(true);
            connection.setRequestProperty("Content-Type","application/json; charset=UTF-8");
            connection.setRequestProperty("X-Ds-Signature",SignatureData);
            connection.connect();

            // post request
            DataOutputStream out = new DataOutputStream(connection.getOutputStream());
            out.write(data.getBytes("UTF-8"));
            out.flush();
            out.close();

            BufferedReader reader = new BufferedReader(new InputStreamReader(
                    connection.getInputStream()));
            String lines;
            StringBuffer sb = new StringBuffer("");
            while ((lines = reader.readLine()) != null) {
                lines = new String(lines.getBytes(), "utf-8");
                sb.append(lines);
            }
            System.out.println(sb);
            reader.close();
            // close connection
            connection.disconnect();
        } catch (MalformedURLException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (UnsupportedEncodingException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public static void main(String[] args) {
        createMember();
    }
}
class EXAMPLE
{
    protected $api_url = "<url>"; // This is a example Url, please fill in the right Url from the MIF
    protected $channel = "00746280"; // This is a example Channel, please fill in the right Channel from the MIF
    protected $agent = "SeamlessEx01"; // This is a example Agent, please fill in the right Agent from the MIF
    protected $ds_sign = "";

    public function encrypt($data)
    {
        // import your private key
        $privateKeyId = openssl_pkey_get_private(file_get_contents('example_private.pem')); // Please Change to your rsaPrivateKey
        // sign data with your private key
        openssl_sign($data, $signature, $privateKeyId, 'RSA-SHA256');
        // encode into base64
        $ds_sign = base64_encode($signature);
        $this->ds_sign = $ds_sign;
        // you may free up memory after, but I wouldn't recommend, since you are going to make many requests and sign each of them.
        // importing key from file each time isn't brightest idea
        openssl_free_key($privateKeyId);

        echo "signature: \n" . $ds_sign . "\n";

        return $ds_sign;
    }
    public function decrypt($data)
    {
        // importing public key
        $ds_pub_key = openssl_pkey_get_public(file_get_contents('example_public.pub')); // Please Change to your rsaPublicKey
        // verifying signature for $data and imported public key
        // note that signature firstly was decoded from base64
        $valid = openssl_verify($data, base64_decode($this->ds_sign), $ds_pub_key, 'RSA-SHA256');
        if ($valid == 1){
            echo "signature is valid \n";
        } else {
            echo "signature is NOT valid\n";
        }
        // same thing about freeing of key
        openssl_free_key($ds_pub_key);
    }
    public function CreateMember()
    {
        $data = [
            "channel" => $this->channel, // This is a Channel
            "agent" => $this->agent, // This is a Agent
            "account" => "example001", // This is a example Account, please fill in the right Account from the MIF
        ];
        $content = json_encode($data);
        $signature = $this->encrypt($content);
        $header = [
            'Content-type: application/json',
            'X-Ds-Signature: '.$signature,
        ];

        $curl = curl_init("https://".$this->api_url."/v1/member/create");
        curl_setopt($curl, CURLOPT_HEADER, false);
        curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);
        curl_setopt($curl, CURLOPT_HTTPHEADER, $header);
        curl_setopt($curl, CURLOPT_POST, true);
        curl_setopt($curl, CURLOPT_POSTFIELDS, $content);
        $json_response = curl_exec($curl);

        $status = curl_getinfo($curl, CURLINFO_HTTP_CODE);
        if ( $status != 200 ) {
            die("Error: failed with status $status, response $json_response, curl_error " . curl_error($curl) . ", curl_errno " . curl_errno($curl));
        }

        curl_close($curl);

        $response = json_decode($json_response, true);
        print_r($response);
    }
}

$example = new EXAMPLE();
$example->CreateMember();
import json
import requests
from Crypto.Hash import SHA256
from Crypto.Signature import PKCS1_v1_5
from Crypto.PublicKey import RSA
import base64

api_url = 'https://<url>/' # This is a example Url, please fill in the right Url from the MIF
api = 'v1/member/create'
example_agent = "SeamlessEx01" # This is a example Agent, please fill in the right Agent from the MIF
example_channel = "00746280" # This is a example Channel, please fill in the right Channel from the MIF
example_account = "example001" # This is a example Account, please fill in the right Account from the MIF


def SignData(d, f):
    digest = SHA256.new()
    digest.update(d.encode())
    private_key = open(f, 'rb').read()
    prkey = RSA.importKey(private_key)
    signer = PKCS1_v1_5.new(prkey)
    sig = signer.sign(digest)
    return base64.b64encode(sig)

def VerifyData(d, s, f):
    digest = SHA256.new()
    digest.update(d.encode())
    public_key = open(f, 'rb').read()
    pbkey = RSA.importKey(public_key)
    signer = PKCS1_v1_5.new(pbkey)
    return signer.verify(digest, s)


def SignAndVerify():
    data = {"channel": example_channel ,"agent": example_agent, "account": example_account}
    print ("Sign: ", SignData(json.dumps(data), "example_private.pem")) # Please Change the example_private.pem to your rsaPrivateKey
    print ("Verify result: ", VerifyData(json.dumps(data), base64.b64decode(SignData(json.dumps(data), "example_private.pem")), "example_public.pub")) # Please Change the example_private.pem to your rsaPrivateKey, and change the example_public.pub to your rsaPublicKey


def CreateMember():
    data = {"channel": example_channel ,"agent": example_agent, "account": example_account}
    headers = {
        'content-type': "application/json",
        'X-Ds-Signature': SignData(json.dumps(data), "example_private.pem") # Please Change the example_private.pem to your rsaPrivateKey
    }
    resp = requests.request("POST", api_url + api, headers=headers, json=json.loads(json.dumps(data)))
    print (resp.text)

SignAndVerify()
CreateMember()
// nodejs example

const request = require("request").defaults({});
var crypto = require("crypto");
var fs = require("fs");

const api_url = "<url>"; // This is a example Url, please fill in the right Url from the MIF
const channel = "00746280"; // This is a example Channel, please fill in the right Channel from the MIF
const agent = "SeamlessEx01"; // This is a example Agent, please fill in the right Agent from the MIF

function CreateMember() {
  const data = {
    channel: channel, // This is a Channel
    agent: agent, // This is a Agent
    account: "example001", // This is a example Account, please fill in the right Account from the MIF
  };
  var dataString = JSON.stringify(data);
  return new Promise((done) => {
    fs.readFile("example_private.pem", function (err, privateKey) {
      // Please Change the example_private.pem to your rsaPrivateKey
      var signerObject = crypto.createSign("RSA-SHA256");
      signerObject.update(dataString);
      var signature = signerObject.sign({ key: privateKey }, "base64");
      var sendData = JSON.parse(dataString);
      var options = {
        url: "https://" + api_url + "/v1/member/create",
        headers: {
          "X-Ds-Signature": signature,
        },
        method: "Post",
        json: sendData,
      };
      request(options, (err, res, body) => {
        console.log(body);
      });
    });
  });
}

CreateMember();

API Data Signing Method

Encryption Method and Process

Example:

POST /v1/member/create HTTP/1.1
Content-Type: application/json
X-Ds-Signature: QNng1bL9YEXE5yLH6MSCuZ9u34GC3ACrt/EeCltCKGDxwQp3EF/IwpdUlVf/h+DFanLzCirFygiRkwFP09yNHCg6DpZZUc+c0mEmPF7r6xu4Zx4BcRKmBe6hBxUVFHtIdnmvXwuEf5xKAa2/pa0+udyQ+z/YJ14FZcNb8iEfLUI=

{"agent":"agent01","account":"player001","token":"1ceda4754e7e413592a6450fb224165f"}

Wallet API-Wallet Operation

Operator should execute wallet API

Wallet API

Get Balance

To get the balance of member

HTTP Request

POST https://<url>/api/wallet/balance

Example:

{
  "agent": "agent01",
  "account": "player001",
  "token": "e278a9ea38da42dd9b84148c2f99a031",
  "amount": 0,
  "game_id": "100",
  "owner_account": "owner01"
}

URL Parameters

Parameter Type Enforce Description
agent String Yes agent account
account String Yes member account
token String Yes wallet access token
amount Number No amount
game_id String Yes game id
owner_account String No owner agent account

The above command returns JSON structured like this:

{
  "balance": 99999.1,
  "status": 1
}

Response Parameters

Parameter Type Description
balance Number member balance PS: support to 2nd decimal place
status Number wallet message code

Bet And Payout Request

The operator must first decrease the bet_amount (check if the balance is enough to decrease the bet_amount),
then the operator increases the payout_amount,
and return new balance.

HTTP Request

POST https://<url>/api/wallet/bet_n_pay

Example:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "agent": "agent01",
  "account": "player001",
  "game_id": "1001",
  "owner_account": "owner01",
  "token": "88406af3628342f19cea6042d0cb2267",
  "bet_amount": 10,
  "payout_amount": 20,
  "valid_amount": 10,
  "feature_buy": "FG1:2",
  "bet_id": "65ea8c1554e79819302d68e5"
}

URL Parameters

Parameter Type Enforce Description
trans_id String Yes transaction id PS: Mongo ObjectId
agent String Yes agent account
account String Yes member account
game_id String Yes game id
owner_account String No owner agent account
token String Yes wallet access token
bet_amount Number Yes transaction bet_amount PS: support to 2nd decimal place
payout_amount Number Yes transaction payout_amount PS: support to 2nd decimal place
valid_amount Number Yes valid amount
feature_buy String No Feature Buy Type:Bet Level
ex: FG1:2
bet_id String Yes bet record id PS: Mongo ObjectId

The above command returns JSON structured like this:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "balance": 4000,
  "status": 1
}

Response Parameters

Parameter Type Description
trans_id String transaction id PS: equal to transaction id requested
balance Number member balance PS: support to 2nd decimal place
status Number bet_n_pay accepted status

bet_n_pay accepted status

Status Description
1 payout successful
2 The user does not exist (deemed as a payout failure)
3 Failed to sign(deemed as a payout failure)
5 Balance Insufficient(deemed as a payout failure)
If other than status is returned, bet_n_pay will be resent

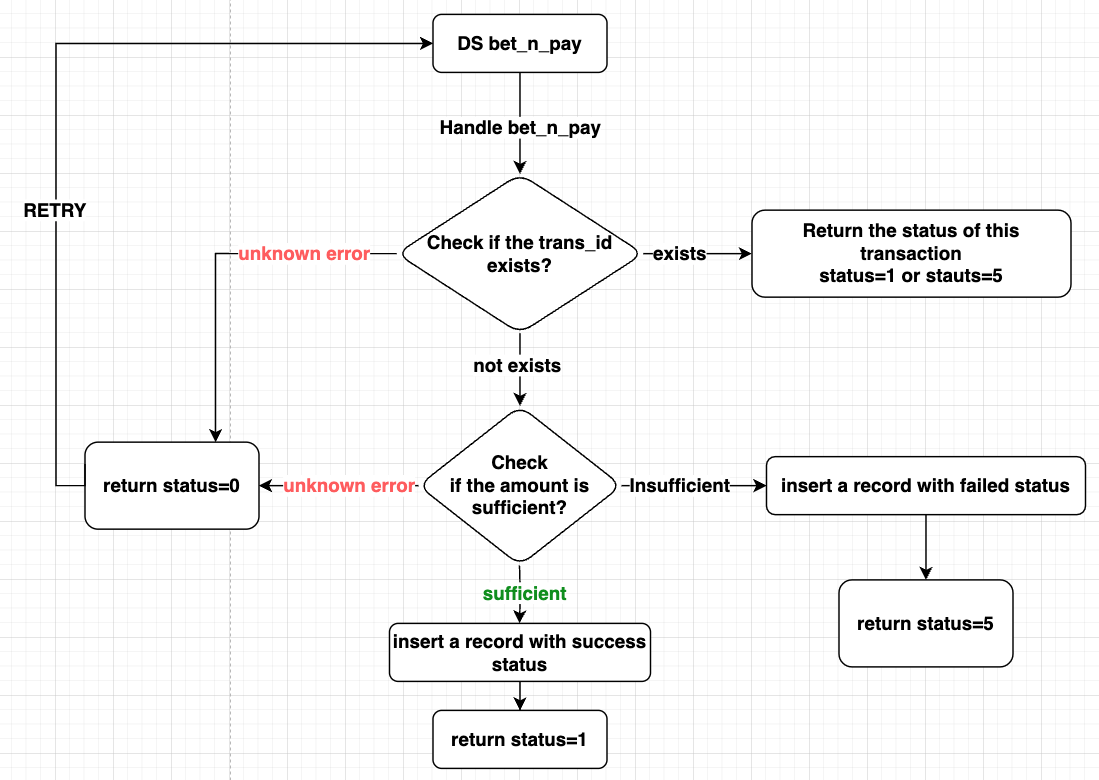

bet_n_pay flowchart

Bet Request

Called when the member bets.
Operator is expected to decrease member's balance by amount and return new balance.

HTTP Request

POST https://<url>/api/wallet/bet

Example:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "amount": 8000,
  "agent": "agent01",
  "account": "player001",
  "token": "88406af3628342f19cea6042d0cb2267",
  "game_id": "1001",
  "owner_account": "owner01"
}

URL Parameters

Parameter Type Enforce Description
trans_id String Yes transaction id PS: Mongo ObjectId
amount Number Yes transaction amount PS: support to 2nd decimal place
agent String Yes agent account
account String Yes member account
token String Yes wallet access token
game_id String Yes game id
owner_account String No owner agent account

The above command returns JSON structured like this:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "balance": 4000,
  "status": 1
}

Response Parameters

Parameter Type Description
trans_id String transaction id PS: equal to transaction id requested
balance Number member balance PS: support to 2nd decimal place
status Number wallet message code

Payout Request

Called when the User wins.
Operator is expected to increase member's balance by amount and return new balance.
Before any altering of User's balance, operator has to check that win wasn't processed or canceled before.

HTTP Request

POST https://<url>/api/wallet/payout

Example:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "amount": 8000,
  "agent": "agent01",
  "account": "player001",
  "game_id": "1001",
  "owner_account": "owner01",
  "token": "88406af3628342f19cea6042d0cb2267",
  "valid_amount": 10,
  "feature_buy": "FG1:2",
  "bet_id": "65ea8c1554e79819302d68e5"
}

URL Parameters

Parameter Type Enforce Description
trans_id String Yes transaction id PS: equal to transaction id requested
amount Number Yes transaction amount PS: support to 2nd decimal place
agent String Yes agent account
account String Yes member account
game_id String Yes game id
owner_account String No owner agent account
token String No wallet access token
valid_amount Number Yes valid amount
feature_buy String No Feature Buy Type:Bet Level
ex: FG1:2
bet_id String Yes bet record id PS: Mongo ObjectId

The above command returns JSON structured like this:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "balance": 4000,
  "status": 1
}

Response Parameters

Parameter Type Description
trans_id String transaction id PS: equal to transaction id requested
balance Number transaction amount PS: support to 2nd decimal place
status Number Wallet Message Code

Cancel Request

Cancel request would be sent instantly if had not received status code 1

HTTP Request

POST https://<url>/api/wallet/cancel

Example:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "amount": 8000,
  "agent": "agent01",
  "account": "player001",
  "game_id": "1001"
}

URL Parameters

Parameter Type Enforce Description
trans_id String Yes transaction id PS: equal to transaction id requested
agent String Yes agent account
account String Yes member account
game_id String Yes game id
amount Number Yes transaction amount PS: support to 2nd decimal place
owner_account String No owner agent account
token String No wallet access token

The above command returns JSON structured like this:

{
  "trans_id": "6475bec9b187af9ab5884e30",
  "balance": 4000,
  "status": 1
}

Response Parameters

Parameter Type Description
trans_id String transaction id PS: equal to transaction id requested
balance Number transaction amount PS: support to 2nd decimal place
status Number wallet Message Code

Game API

Member

To Register Members in DS

To register a new member by API

HTTP Request

POST https://<url>/v1/member/create

Example:

{
  "channel": "53346874",
  "agent": "agent01",
  "account": "player001"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account
account String Yes member account

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  }
}

Response Parameters

Parameter Type Description
code Number message code
msg String message

Member Login in Game

To get the launch URL for members

HTTP Request

POST https://<url>/v1/member/login_game

Example:

{
  "channel": "91213456",
  "game_id": "1001",
  "lang": "zh_cn",
  "is_demo": true
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account
account String Yes member account
token String Yes wallet operating token
game_id String Yes game id
lang String Yes please check language supported
oper String No optional parameters
backurl String No URL for back button to direct
is_demo Boolean No enable demo or not
btn String No hide buttons or not. please check the sheet below
extra String No extra parameter ex: 1,2,3 please check the sheet below
max_bet Number No maximum of bet level
min_bet Number No minimum of bet level
level String No level of hall (please check info below)

btn parameters sheet

Exit Button Record Button Parameter
hide show 0,1
show show 1,1
show hide 1,0
hide hide 0,0

default to show both buttons

extra parameters sheet

function group Parameter Description
web A 1 web
web app A 2 boot with app webview
native app A 3 native app
locking straight B 11 to lock screen in straight mode

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  },
  "url": "https://game_server_url/h5/1001/?token=d01e14944dcd4a0e9e207f4438bb37da&lang=zh_cn&oper=ds&backurl=https://backurl.com"
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
url String url for member to use

UNDER MAINTENANCE:

{
  "result": {
    "code": 1,
    "msg": "UNDER MAINTENANCE"
  },
  "static": "",
  "dynamic": "",
  "token": "",
  "url": "https://www.dragoonsoft.com/maintenace.html"
}











Member Logout

To logout member by API.

HTTP Request

POST https://<url>/v1/member/logout

Example:

{
  "channel": "53346874",
  "agent": "AG000001",
  "account": "Username002"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account
account String Yes member account

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  }
}

Response Parameters

Parameter Type Description
code Number message code
msg String message

To Inquire Online Status of Members

Member online information

HTTP Request

POST https://<url>/v1/member/login_info

Example:

{
  "channel": "53346874",
  "agent": "AG000001",
  "account": "Username002"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account
account String Yes member account

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "SUCCESS"
  },
  "login_info": {
    "online": 2
  }
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
online Number 1: online 2: offline

Online Member List

The list of online members.

HTTP Request

POST https://<url>/v1/member/online_list

Example:

{
  "channel": "53346874",
  "agent": "AG000001"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "SUCCESS"
  },
  "list": [
    {
      "agent": "game01",
      "account": "Username002",
      "game_id": "0000",
      "login_time": "2020-11-05T08:14:37.929977473Z"
    }
  ]
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
list OnlineMemberList[] online member list info

OnlineMemberList Structure Definition

Parameter Type Description
agent String agent account
account String member account
game_id String game id
login_time String login time

Bet Record

Record Structure Definition

Parameter Type Description
id String bet id
bet_at String bet time
finish_at String result time
agent String agent account
member String member account
game_id String game id
game_serial String serial for games
game_type Number game_type
round_id String round ID
bet_amount Number bet amount
payout_amount Number win score(excluded fee)
valid_amount Number valid amount
status Number bet status
fee_amount Number fee amount
jp_amount Number jackpot amount
event_id String event id
event_amount Number event amount
feature_buy String Feature Buy Type:Bet Level
ex: FG1:2

Feature Buy Type

Parameter Type Descryption
FG1 String Free Game
BG1 String Bonus Game

Record Status

Code Descryption
1 Normal
2 Refund
3 Bet Refused
4 Bet Record Voided
5 Cancelled

Time Structure Definition

Parameter Type Description
start_time String start date ex: 2018-10-19T08:54:14+01:00
end_time String end date ex: 2018-10-20T11:47:08+01:00

Inquire Bet Record

To inquire bet records of members belong to agent in a time range.

HTTP Request

POST https://<url>/v1/record/get_bet_records

Example:

{
  "channel": "53346874",
  "finish_time": {
    "start_time": "2018-10-19T08:54:14+01:00",
    "end_time": "2018-10-20T11:47:08+01:00"
  },
  "index": 0,
  "limit": 10
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
finish_time Time No inquire transaction by result time
index Number No start page default: 0
limit Number No inquire limit default: 1000 maximum: 5000

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success",
    "timestamp": "2018-11-12T04:03:53.174604283Z"
  },
  "total": "8870",
  "rows": [
    {
      "id": "1",
      "bet_at": "2018-10-18T05:47:51Z",
      "finish_at": "2018-10-18T05:47:51Z",
      "agent": "AG0000001",
      "member": "MB03",
      "game_id": "1001",
      "game_serial": "4604283",
      "game_type": 1,
      "round_id": "1",
      "bet_amount": "1200",
      "payout_amount": "0",
      "valid_amount": "1200",
      "status": 1,
      "fee_amount": "10",
      "jp_amount": "10",
      "event_id": "",
      "event_amount": 0,
      "feature_buy": ""
    },
    {
      "id": "2",
      "bet_at": "2018-10-18T05:47:51Z",
      "finish_at": "2018-10-18T05:47:51Z",
      "agent": "AG0000001",
      "member": "MB03",
      "game_id": "1001",
      "game_serial": "38427123",
      "game_type": 1,
      "round_id": "1",
      "bet_amount": "3600",
      "payout_amount": "0",
      "valid_amount": "3600",
      "status": 1,
      "fee_amount": "10",
      "jp_amount": "10",
      "event_id": "",
      "event_amount": 0,
      "feature_buy": "FG1:2"
    }
  ]
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
timestamp String time
total String total items
rows Record[] bet record rows

game_type

Code Descryption
1 FISHING
3 SLOT
4 ARCADE
99 SYSTEM









































Get Bet Record URL for Details

To inquire the URL for bet details

HTTP Request

POST https://<url>/v1/record/get_bet_detail_page

Example:

{
  "channel": "53346874",
  "game_id": "2001",
  "game_serial": "23134242",
  "lang": "zh_cn",
  "session_id": "1001_iEZYLBHs3I8yDAnR:5f3db5dd96009684de9e22e3_5f3dbd055839025095efa8be"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
game_id String Yes game id
game_serial String Yes serial for games
lang String Yes zh_cn and en_us supported
id String No bet id
session_id String No game round id for particular operator

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  },
  "url": "https://<record.page>/bet_detail/?token=3fd0e97e-198b-4d34-9ab0-cd3f82f79ba3&lang=zh_cn"
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
url String url for member to use

Get Bet Record History URL

To inquire the URL for bet history.

HTTP Request

POST https://<url>/v1/member/bet_history

Example:

{
  "channel": "53346874",
  "agent": "AG0000001",
  "account": "MB03",
  "game_id": "2001",
  "lang": "zh_cn"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
agent String Yes agent account
account String Yes member account
game_id String Yes game id
lang String Yes zh_cn and en_us supported
session_id String No game round id for particular operator

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  },
  "url": "https://<record.page>/auth/eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ0IjoiODc3MjZjOTg3M2NlNGRmNWI4YTM4MTdiZTc2YjU5NTQifQ.qzLt51idNxxsZV4nXfO0wui-moVDeRdolhlNNdZp7go?g=1&gid=1001&lang=en_us"
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
url String bet record detail url

Win/Lose Statistics

To inquiry the statistics of win/lose for members.

HTTP Request

POST https://<url>/v1/record/get_member_bet_records_by_hour

Example:

{
  "channel": "53346874",
  "start_time": "2018-10-19T13:00:00+01:00",
  "end_time": "2018-10-19T13:59:59+01:00",
  "index": 0,
  "limit": 10
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
start_time String Yes start time
end_time String Yes end time
index Number No start page
limit Number No inquire limit

The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "success"
  },
  "rows": [
    {
      "statistics_date": "2018-10-19T13:00:00+01:00",
      "bet_count": 0,
      "bet_amount": 0,
      "real_bet_amount": 0,
      "payout_amount": 0,
      "valid_amount": 0,
      "fee_amount": 0,
      "jp_amount": 0,
      "win_loss_amount": 0
    }
  ]
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
rows WinLoss[] win lose rows

WinLoss Structure Definition

Parameter Type Description
statistics_date String statistics date
bet_count Number bet count
bet_amount Number bet amount
real_bet_amount Number real bet amount
payout_amount Number payout amount
valid_amount Number valid amount
fee_amount Number fee amount
jp_amount Number jackpot amount
win_loss_amount Number win loss amount

Bet Records Summary by Agent

To summarize bet records in a period by agent.

HTTP Request

POST https://<url>/v1/record/get_agent_summary_bet_records

Example:

{
  "channel": "53346874",
  "finish_time": {
    "start_time": "2018-10-19T08:54:14+01:00",
    "end_time": "2018-10-19T08:57:08+01:00"
  }
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)
finish_time Time Yes inquire transaction by result time











The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "SUCCESS"
  },
  "rows": [
    {
      "agent": "cstest00",
      "bet_count": "246",
      "bet_amount": 9541.8,
      "payout_amount": 9472.12,
      "valid_amount": 9541.8,
      "fee_amount": 0,
      "jp_amount": 0
    }
  ]
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
rows BetRecordsSummaryByAgent[] Bet Records Summary by Agent info

BetRecordsSummaryByAgent Structure Definition

Parameter Type Description
agent String agent account
bet_count String bet count
bet_amount Number bet amount
payout_amount Number win score(excluded fee)
valid_amount Number valid amount
fee_amount Number fee amount
jp_amount Number jackpot amount

Game Settings

Game Status

To inquiry the status of game

HTTP Request

POST https://<url>/v1/config/get_game_info_state_list

Example:

{
  "channel": "53346874"
}

URL Parameters

Parameter Type Enforce Description
channel String Yes channel(provided in MIF)






The above command returns JSON structured like this:

{
  "result": {
    "code": 1,
    "msg": "SUCCESS"
  },
  "game_info_state_list": [
    {
      "id": "1001",
      "type": "1",
      "active": true,
      "names": {
        "en_us": "Ocean Lord",
        "th_th": "จ้าวมหาสมุทร",
        "vi_vn": "Chúa tể đại dương",
        "zh_cn": "海霸王"
      },
      "latest": false,
      "hot": true,
      "weight": "3002"
    },
    {
      "id": "1002",
      "type": "1",
      "active": true,
      "names": {
        "en_us": "Let's Shoot",
        "th_th": "มายิงกัน",
        "vi_vn": "Hãy Bắn",
        "zh_cn": "吃我一炮"
      },
      "latest": false,
      "hot": true,
      "weight": "3003"
    }
  ]
}

Response Parameters

Parameter Type Description
code Number message code
msg String message
game_info_state_list GameInfoStateList[] game info

GameInfoStateList Structure Definition

Parameter Type Description
id String game id
type String game type
active Boolean actived or not
names Map languages
latest Boolean latest
hot Boolean hot
weight String weight

Return Code

Game API Message Code Info

code Description
0 unknown error
1 succeeded
2 duplicated
3 required field
4 login failed
5 API access failed
6 information not found
7 request time out
8 verification code invalid
9 user blocked
10 member cannot be found
11 agent cannot be found
12 content type error
13 game not found
16 request limit reached
1000 signature failed
1003 verification failed
1004 data base access failed
1005 wallet not found
1006 transaction not found
1007 processing failed
1012 time is out of range

Wallet API Message Code Info

Status Description
0 unknown error. bet received will execute cancel process. payout received will enter process to wait payout next time. cancel received will enter process to wait cancel next time.
1 succeeded
2 member doesn't exist
3 verification failed
4 transaction duplicated
5 balance insufficient
6 transaction number doesn't exist. while oprator received payout and cancel request, if there is no bet record with the same id, this code should be returned.

Format

API Format

Parameter Key Type Format
account String 0~9 , a~z , A~Z , - , _ , length from 4 to 36
token String 0~9 , a~z , A~Z , - , length from 20 to 36
serial String 0~9 , a~z , A~Z , - , _ , length from 8 to 36

Time Format

Supported

Languages

Parameter Description
zh_cn Simplified Chinese
zh_hk Traditional Chinese
en_us English
vi_vn Vietnamese
th_th Thailand
id_id Indonesian language
ja_jp Japanese
ko_kr Korean
pt_pt Portuguese
es_es Spanish
bn_bd Bengali
hi_in Hindi
fr_fr French

Currencies

Parameter System Ratio
1IDR 1 : 1
1LAK 1 : 1
1MMK 1 : 1
1VND 1 : 1
AED 1 : 1
AMD 1 : 1
ARS 1 : 1
AUD 1 : 1
AZN 1 : 1
BDT 1 : 1
BRL 1 : 1
BYN 1 : 1
CAD 1 : 1
CDF 1 : 1
CHF 1 : 1
CLP 1 : 1
CNY 1 : 1
COP 1 : 1,000
CZK 1 : 1
EUR 1 : 1
ETB 1 : 1
GBP 1 : 1
GEL 1 : 1
GHS 1 : 1
HKD 1 : 1
HTG 1 : 1
HUF 1 : 1
IN5 1 : 1
INR 1 : 1
IRR 1 : 1,000
JPY 1 : 1
KES 1 : 1
KGS 1 : 1
KHR 1 : 1
kIDR 1 : 1,000
kLAK 1 : 1,000
kMMK 1 : 1,000
KRW 1 : 1
kVND 1 : 1,000
KZT 1 : 1
LKR 1 : 1
MDL 1 : 1
MXN 1 : 1
MYR 1 : 1
NGN 1 : 1
NIO 1 : 1
NOK 1 : 1
NPR 1 : 1
NZD 1 : 1
pTTT 1 : 1
PEN 1 : 1
PHP 1 : 1
PK5 1 : 1
PKR 1 : 1
PLN 1 : 1
RUB 1 : 1
SEK 1 : 1
SGD 1 : 1
SSP 1 : 1
THB 1 : 1
TMT 1 : 1
TND 1 : 1
TRY 1 : 1
TZS 1 : 1,000
uTTT 1 : 1
UAH 1 : 1
UGX 1 : 1,000
USD 1 : 1
USDT 1 : 1
UZS 1 : 1,000
XAF 1 : 1
XBT 1,000,000:1
XOF 1 : 1
ZAR 1 : 1
ZMW 1 : 1

Update Records

N Added、 U Updated、D Deleted

v1.12.5

2025/10/14

N Added Game API Message Code Info 13 game not found
D Deleted Cancel request would be sent instantly if had not received status code 1 only for Bet Request.

v1.12.4

2025/10/13

N Added Languages Bengali Hindi French

v1.12.3

2025/02/20

N Added Inquire Bet Record Attention

v1.12.2

2024/6/25

N Added Game Settings Game Status parameter latest,hot,weight

v1.12.1

2024/3/7

N Add Wallet API-Bet And Payout Request parameter bet_id
N Add Wallet API-Payout Request parameter bet_id

v1.12.0

2023/7/18

N Add Wallet API-Bet And Payout Request
U Updated Wallet API-Payout Request parameter valid_amount, feature_buy

v1.11.5

2022/5/26

U Updated Member Login in Game parameter level

v1.11.4

2022/4/29

D Deleted API-Payout Request important information Cancel request would be sent instantly if had not received status code 1

v1.11.3

2022/1/13

U Updated Bet Record parameter event_id, event_amount

v1.11.2

2021/12/2

U Updated Member Login in Game maintenance Attention

v1.11.1

2021/10/12

U Updated Inquire Bet Record Attention

v1.11.0

2021/10/4

N Added Bet Records Summary by Agent

v1.10.12

2021/9/6

U Updated Get Bet Record URL for Details parameter id D Deleted Get Bet Record URL for Details parameter round_id

v1.10.11

2021/7/1

N Added To Inquire Online Status of Members

v1.10.10

2021/5/12

U Updated Wallet API-Cancel Request parameters

v1.10.9

2021/5/4

U Updated Wallet API-Get Balance, Bet Request, Payout Request parameters D Deleted login_game parameter group_id

v1.10.8

2021/1/25

U Updated login_game returns result.code 1 while under maintenance

v1.10.7

2021/1/8

U Updated Online Member List URL

v1.10.6

2020/12/7

N Added Online Member List

v1.10.5

2020/10/27

U Updated Supported Currencies

v1.10.4

2020/10/21

N Added Win/Lose Statistics

v1.10.3

2020/9/8

U Updated session_id game round id for particular operator

v1.10.2

2020/8/13

U Updated extra locking straight screen

v1.10.1

2020/7/27

N Added Demo Example

v1.10.0

2020/5/22

N Added Game Status

v1.9.0

2020/5/6

U Updated Member Login in Game parameter extra

v1.8.0

2020/4/23

N Added*API Format* description

v1.7.4

2020/3/12

U Updated Member Login in Game whether exit/record buttons be hidden

v1.7.3

2020/3/03

N Added Get Bet Record History URL U Updated Member Login in Game demo option provided

v1.7.2

2019/10/25

N Added Member Logout

v1.7.0

2019/08/25

N Added Member Login in GameTo get the launch URL for members D Deleted Enter Game D Deleted Member Login

v1.6.0

2019/05/01

U Updated URL for directing D Deleted Game List

v1.5.0

2019/04/18

N Added Get Bet Record URL for Details

v1.4.1

2019/03/27

U Member Login-updated member account from 8~16 to 6~16. - and _ supported. U Enter Game-Updated operator differentiation.(Optional)

v1.4

2019/03/20

U Game List-Updated 9 games and 1 lobby released on 2019/03/20

v1.3.1

2019/03/12

U Bet record define-Updated description of payout_amount
